Drawings from a recent job used to sell it:

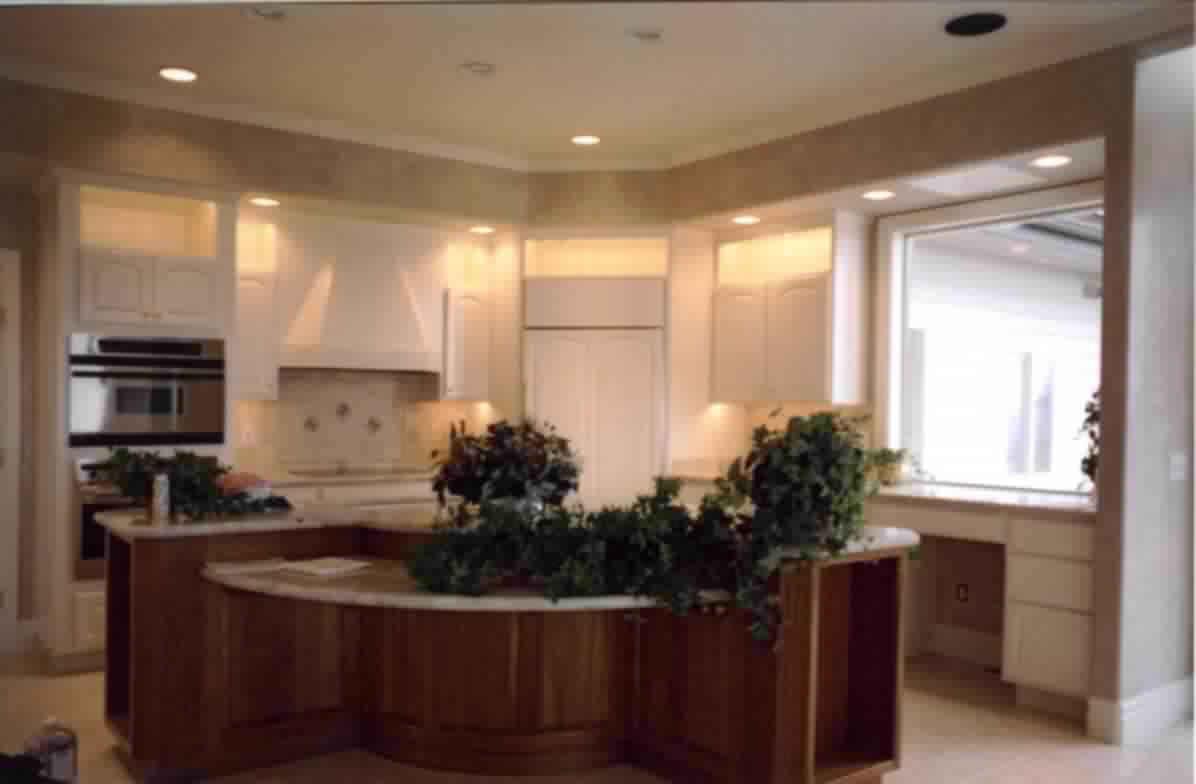

A recently completed kitchen is the feature here.  All of these drawings were used in the communications involved in selling this job.

Click on a thumbnail,  PDF or Photo (gifs are 8 color pictures, pdfs are Acrobat readable files) to see the drawing,  use the browsers back key to return.  The GIFs were made by converting a *.dwg to GIF, the PDFs were made by printing to Acrobat.

Perspective  .................................... bh-kit-per.gif (21581 bytes)                  PDF

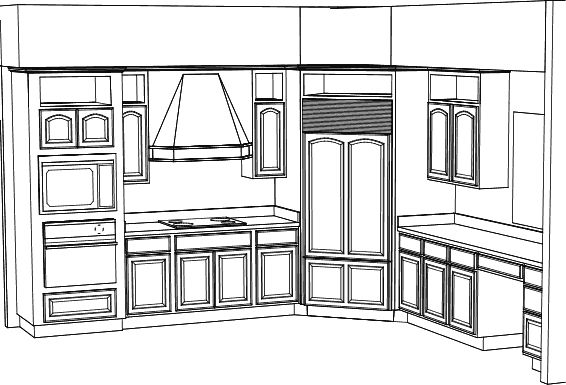

Perspective w/o island...................... bh-kit-per-wo-isl.gif (25513 bytes)                  PDF

Island with radius corners................. bh-isl-opt1.gif (18809 bytes)                  PDF

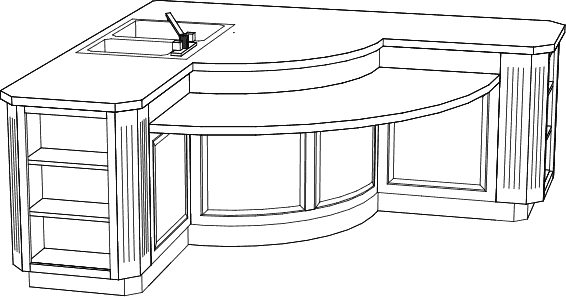

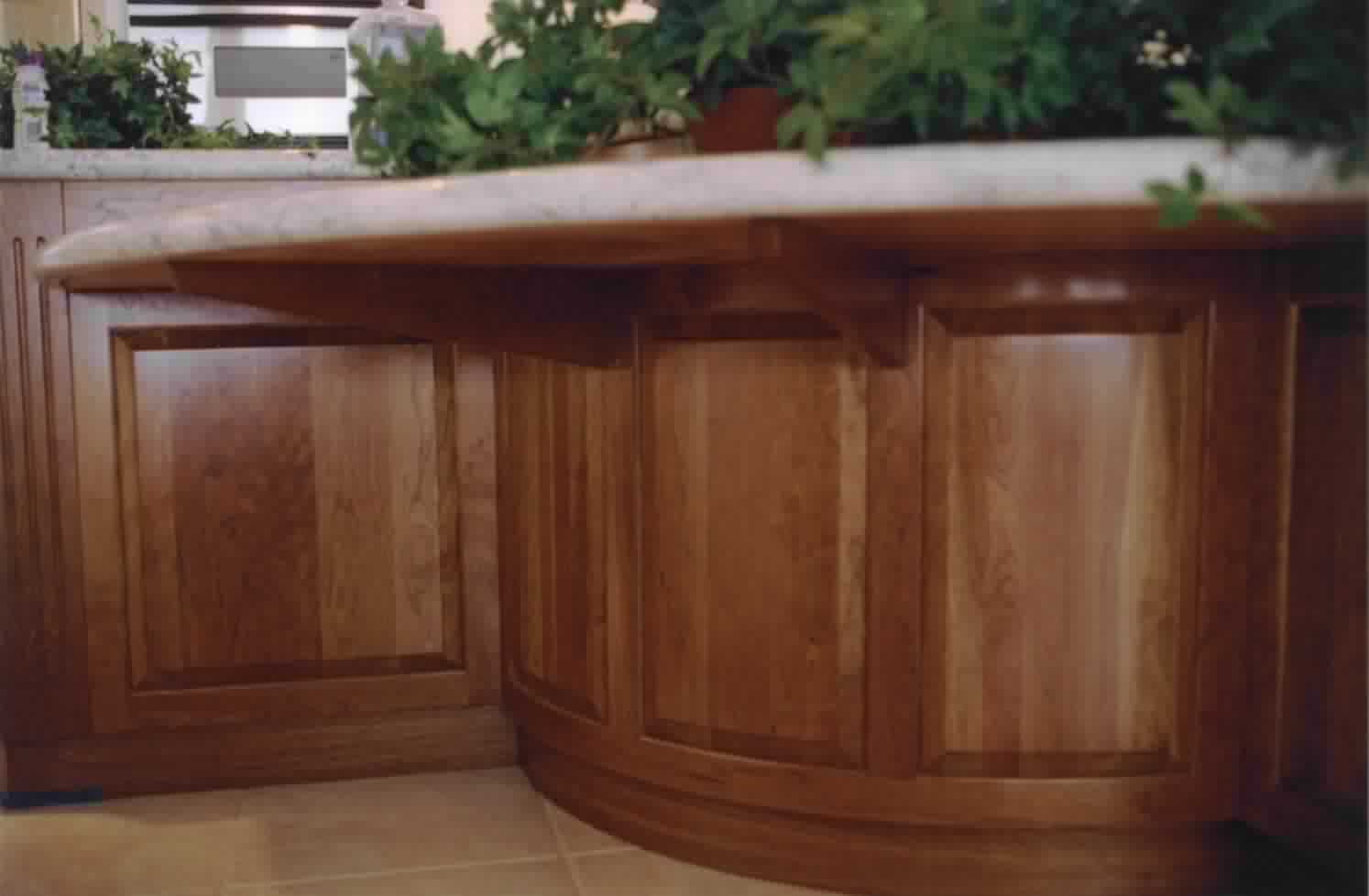

Island  with radius back.................... bh-isl-opt3.gif (14645 bytes)                  PDF                 island_detail.jpg (30929 bytes)

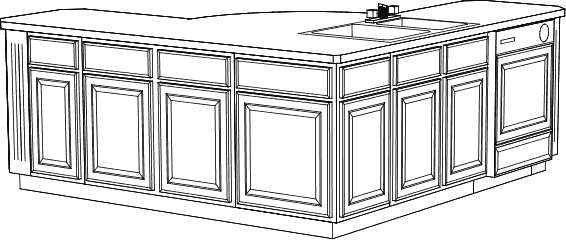

Island  with radius back front view.... bh-isl-opt3-frnt.gif (19165 bytes)                  PDF
