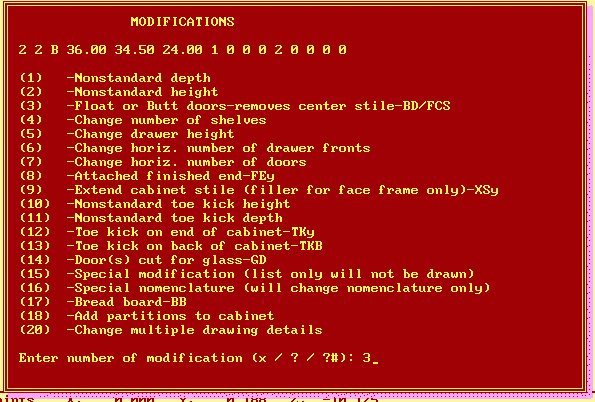

Cabinet Modification Screen:

Designer Plus allows you to change any part of the setup data that will be used to draw this cabinet .  You can make as many modifications as you want, the program will loop to this screen until no selection is made.



For this exercise we will choose several modifications.  3 'Butt door', 8 'Attach finished end', 9 'Extend cabinet stile' (add 3 inches (7.6 cm.) to the left stile), and 12 'Toe kick on end of cabinet' (add 3 inches (7.6 cm.) to the right end).  When we are done with modifications pressing enter without a value ends this command.
